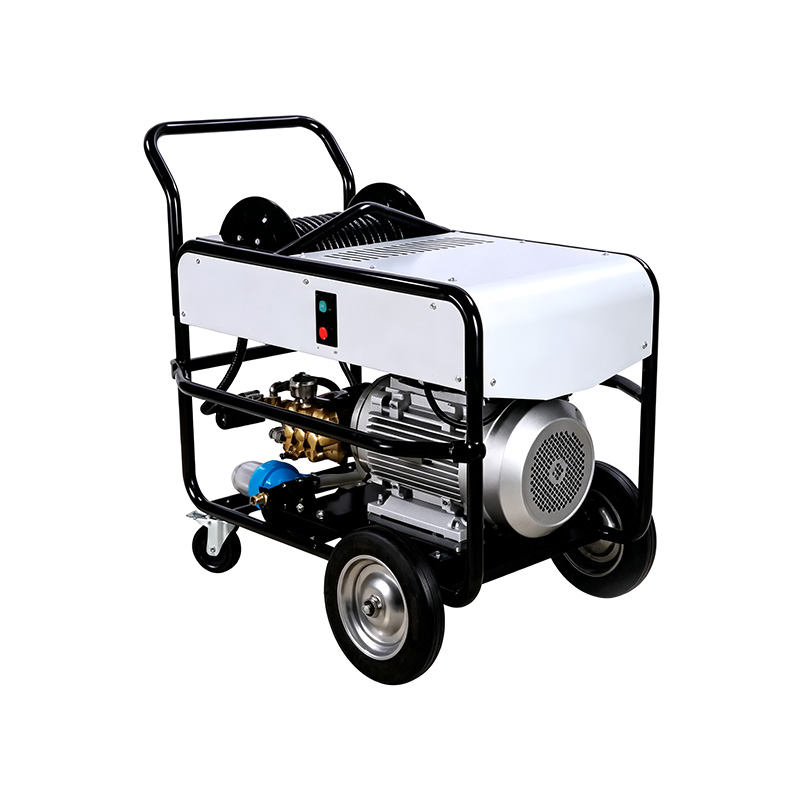

SH SERIES 2000PSI-13.7GPM Electric Motor Pressure Water Jetter

SH series four wheel frame with locking swivel castor, equip with 15kW-4Pole motor, on board hose reel and direct drive heavy duty pump.

Heavy duty grade triplex pump, direct drive. Performance and life proven electric motor. Push-button switch with Electromagnetic starter, overheating protection. Complete with 5meter power cable, plug optional. Powder coasting frame install with 13inch solid wheel and Sinch swivel castor. On board hose reel, with rolling lockable and ON-OFF cock. Cup type linchinlet water filter with hose back inlet

Standard Accessories:

ID3/8"(9.5mm) x 200FT(60m) pressure jetting hose, 3/8" M

Nozzle insert fast penetrating nozzle, ball type cleaning nozzle, in wall ceaning fast rotating nozzle, and drilling nozzle for option.

Foot actuated valve, pressure gun and nozzle for option.

获取报价 +

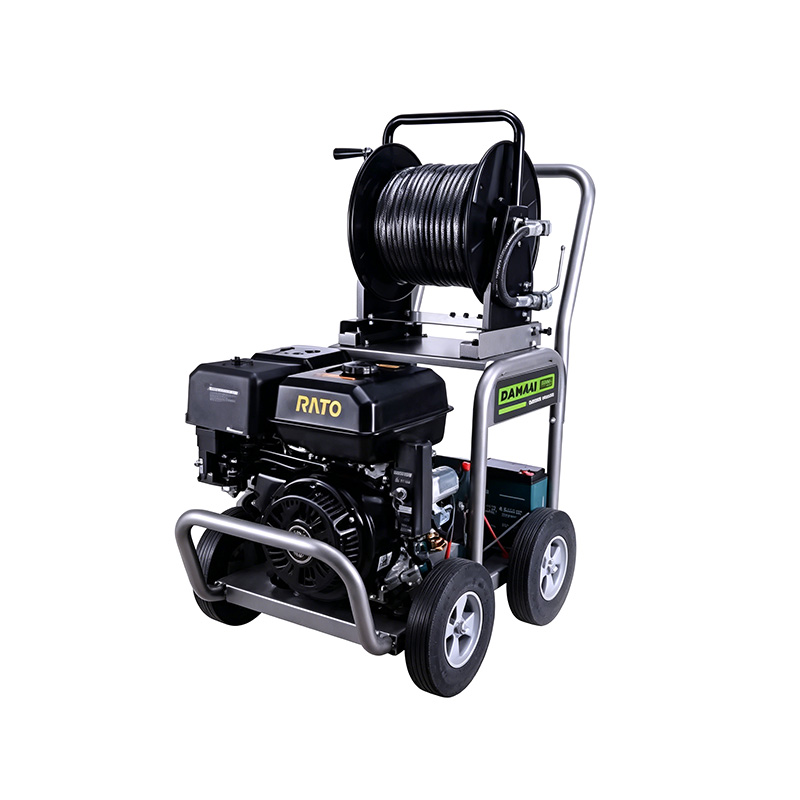

上一篇：ST SERIES 3200PSI/3700PSI Gas Engine Pressure Water Jetter

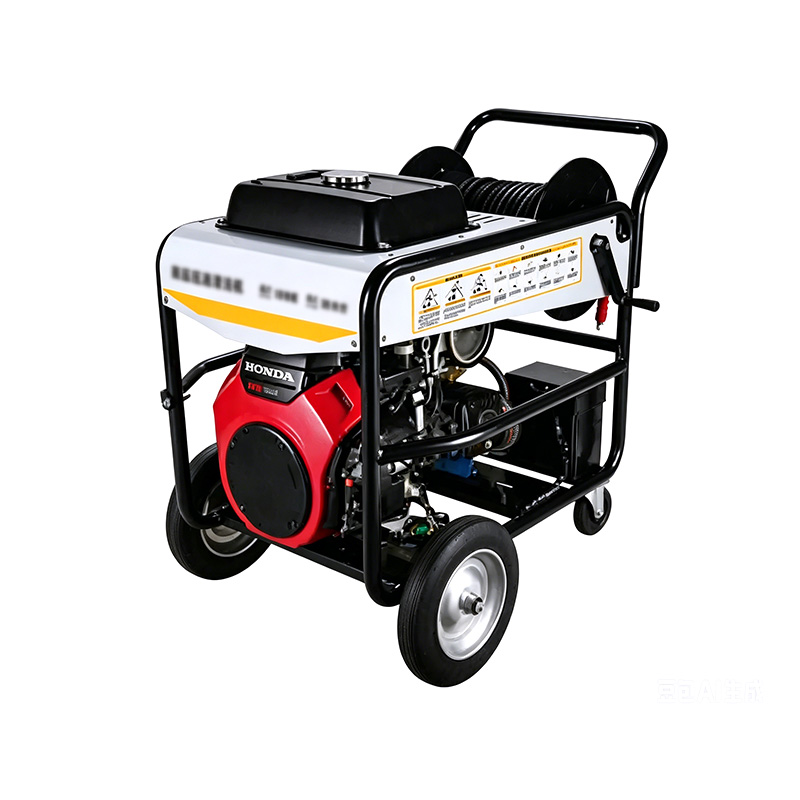

下一篇：SH SERIES 3200PSI-6.6GPM Gas Enaine Pressure Water Jetter

规格参数
应用领域
资料下载

规格参数

MODEL：DCF-14/52SH-15T4

Max Pressure	2030Psi / 140Bar
Rated Flow	13.7Gpm / 52Lpm
Pump Model	DBF-2821C, Direct Drive
Power And Type	15KW, 380V/50HZ, 4P
Shipping Size	110x85x100cm
Shipping Weight	145kgs
