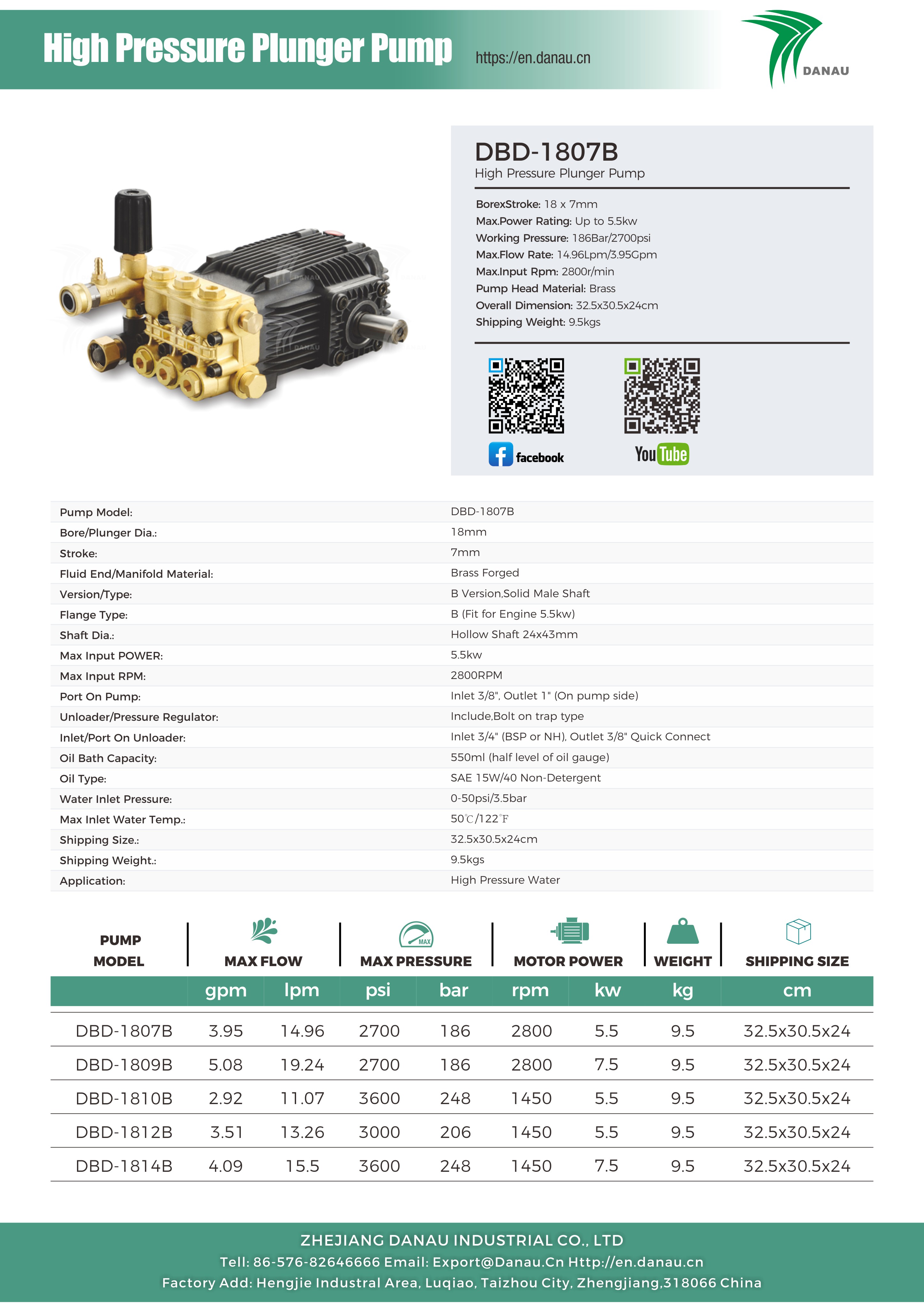

BorexStroke: 18 x 7mm
Max.Power Rating: Up to 5.5kw
Working Pressure: 186Bar/2700psi
Max.Flow Rate: 14.96Lpm/3.95Gpm
Max.Input Rpm: 2800r/min
Head Material: Brass forged
Overall Dimension: 32.5x30.5x24cm
Shipping Weight: 9.5kgs
| Pump Model: | DBD-1807B | |
| Bore/Plunger Dia.: | 18mm | |
| Stroke: | 7mm | |
| Fluid End/Manifold Material: | Brass Forged |
|
| Version/Type: | B Version,Solid Male Shaft | |
| Flange Type: | B (Fit for Engine 5.5kw) | |
| Shaft Dia.: | Hollow Shaft 24x43mm | |
| Max Input POWER: | 5.5kw | |
| Max Input RPM: | 2800RPM | |
| Port On Pump: | Inlet 3/8", Outlet 1" (On pump side) | |
| Unloader/Pressure Regulator: | Include,Bolt on trap type | |
| Inlet/Port On Unloader: | Inlet 3/4" (BSP or NH), Outlet 3/8" Quick Connect | |
| Oil Bath Capacity: | 550ml (half level of oil gauge) | |
| Oil Type: | SAE 15W/40 Non-Detergent | |
| Water Inlet Pressure: | 0-50psi/3.5bar | |
| Max Inlet Water Temp.: | 50℃/122℉ | |
| Shipping Size.: | 32.5x30.5x24cm | |
| Shipping Weight.: | 9.5kgs | |
| Application: | High Pressure Water | |
