BorexStroke: 18 x 7mm
Max.Power Rating: Up to13hp
Working Pressure: 248Bar/3600psi
Max.Flow Rate: 18.2Lpm/4.8Gpm
Max.Input Rpm: 3400r/min
Head Material: Brass forged
Overall Dimension: 32.5x30.5x24cm
Shipping Weight: 9.8kgs

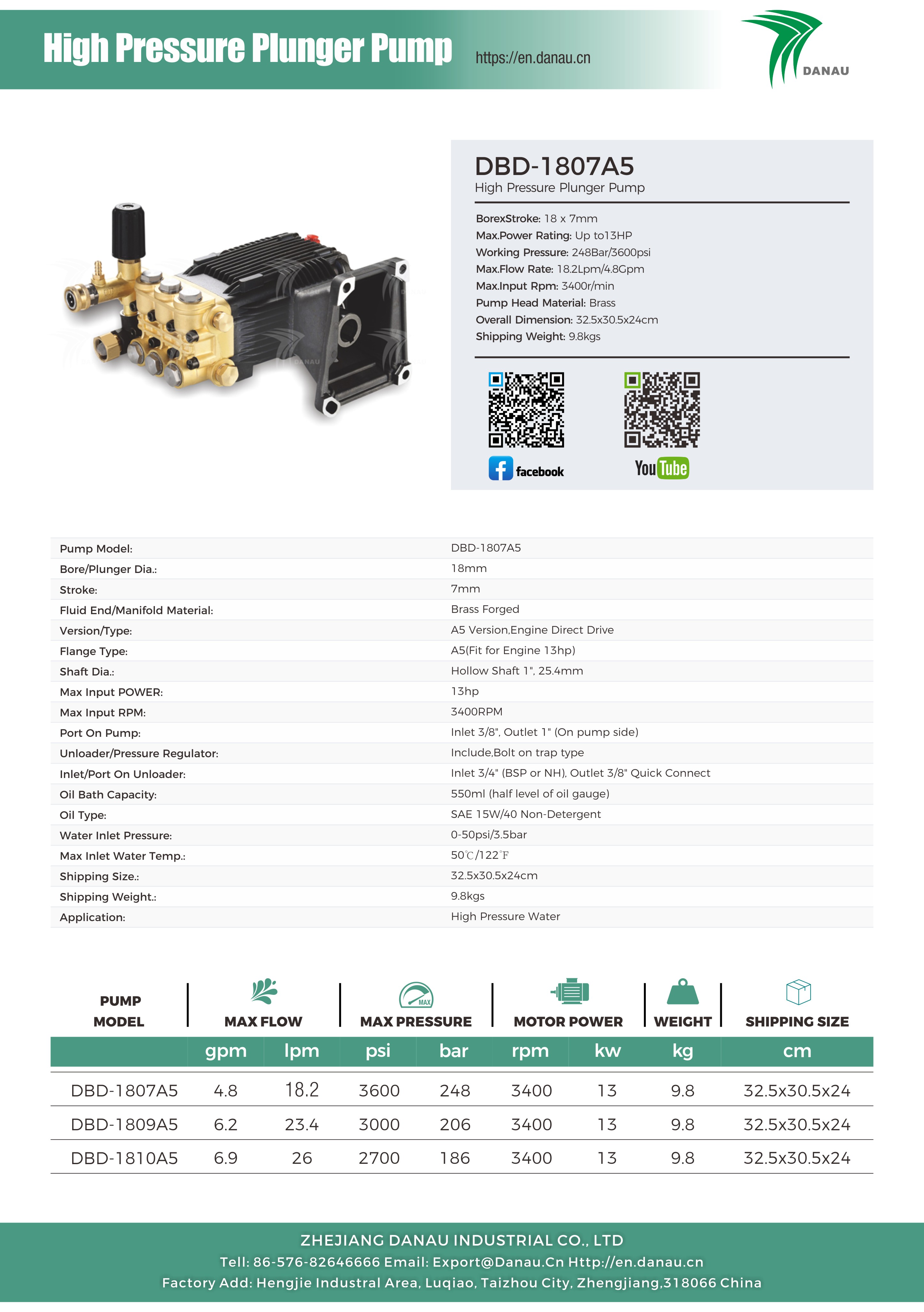

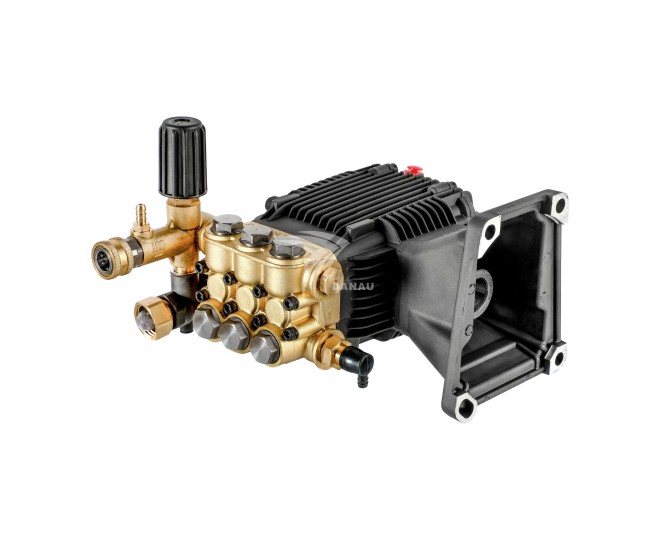

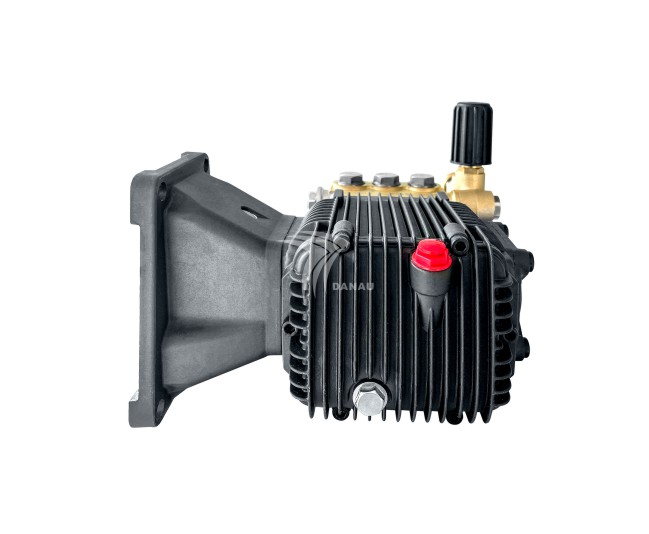

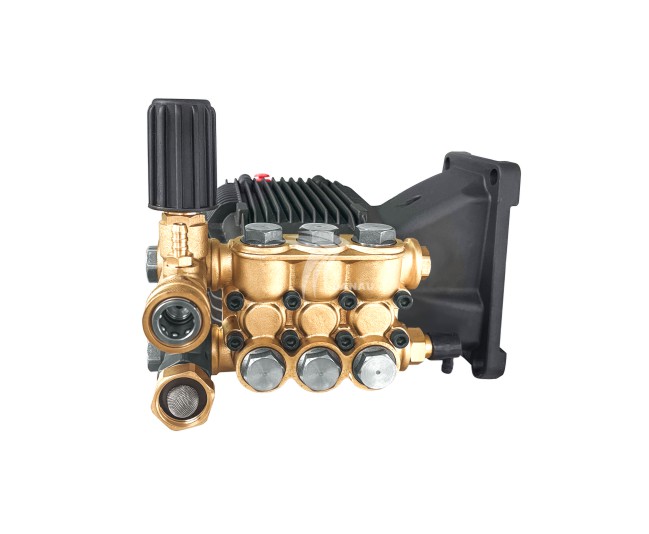

| Pump Model: | DBD-1807A5 | |
| Bore/Plunger Dia.: | 18mm | |
| Stroke: | 7mm | |
| Fluid End/Manifold Material: | Brass Forged |
|
| Version/Type: | A5 Version,Engine Direct Drive | |

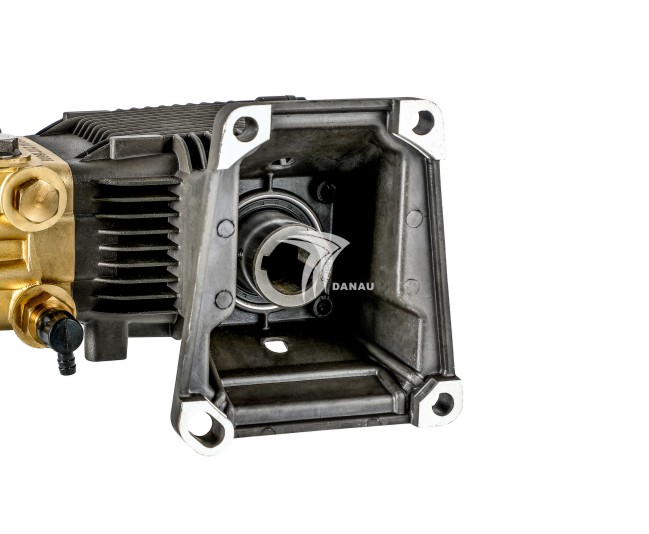

| Flange Type: | A5(Fit for Engine 13hp) | |
| Shaft Dia.: | Hollow Shaft 1", 25.4mm | |
| Max Input POWER: | 13hp | |
| Max Input RPM: | 3400RPM | |
| Port On Pump: | Inlet 3/8", Outlet 1" (On pump side) | |

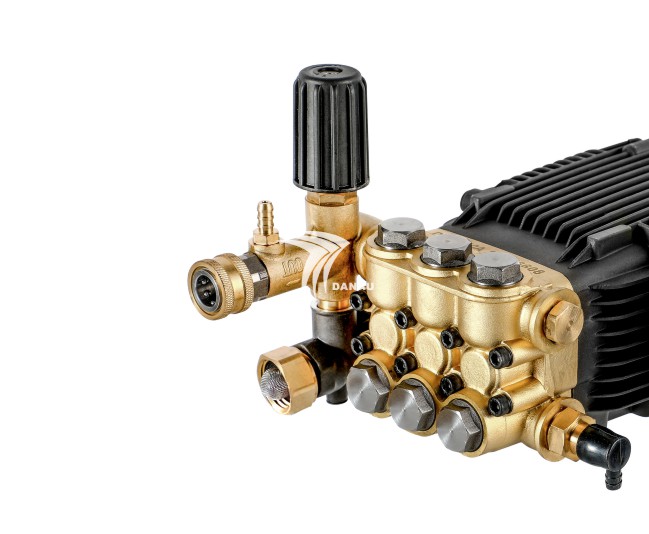

| Unloader/Pressure Regulator: | Include,Bolt on trap type | |
| Inlet/Port On Unloader: | Inlet 3/4" (BSP or NH), Outlet 3/8" Quick Connect | |
| Oil Bath Capacity: | 550ml (half level of oil gauge) | |
| Oil Type: | SAE 15W/40 Non-Detergent | |
| Water Inlet Pressure: | 0-50psi/3.5bar | |
| Max Inlet Water Temp.: | 50℃/122℉ | |
| Shipping Size.: | 32.5x30.5x24cm | |
| Shipping Weight.: | 9.8kgs | |
| Application: | High Pressure Water | |
