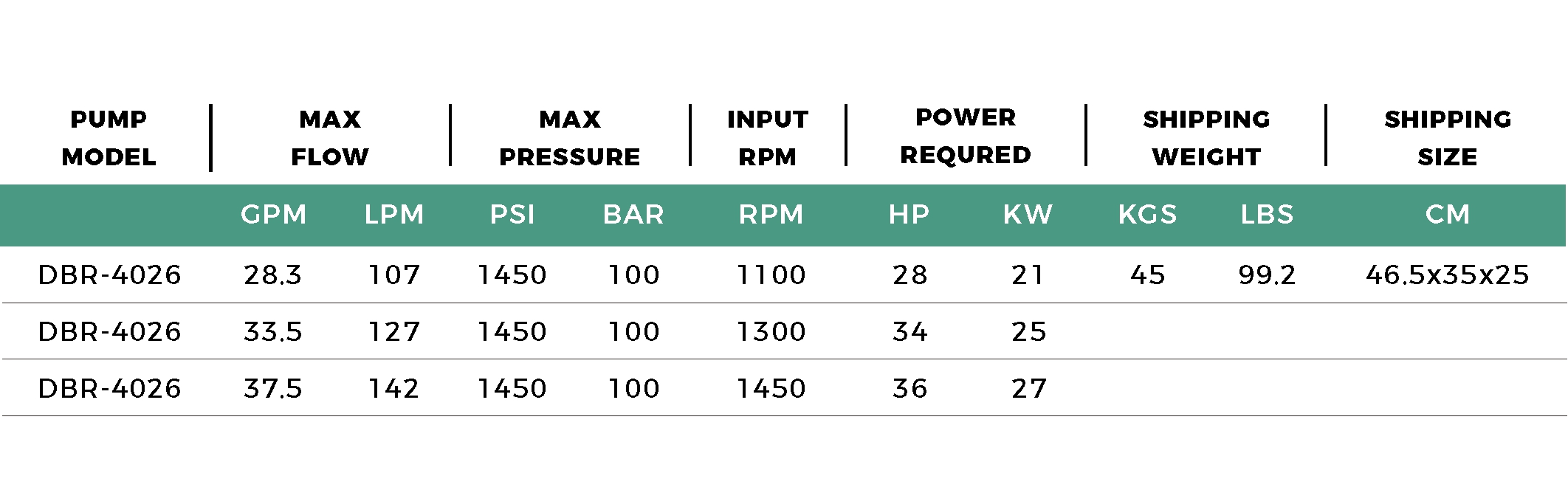

BorexStroke: 40 x 26mm
Max.Power Rating: Up to 36HP
Working Pressure: 100Bar/1450psi
Max.Flow Rate: 142Lpm/37.5Gpm
Max.Input Rpm: 1450r/min
Head Material: Nodular cast iron
Overall Dimension: 46.5x35x25cm
Shipping Weight: 45kgs
| Pump Model: | DBR-4026 | |
| Bore/Plunger Dia.: | 40mm | |
| Stroke: | 26mm | |
| Fluid End/Manifold Material: | Nodular Cast Iron | |
| Fluid End Material Options: | Brass Forged And Stainless Steel 316L, Duplex 2205 | |
| Max Input POWER: | 27KW/36HP | |
| Max Input RPM: | 1450RPM | |
| Shaft Dia.: | 30mm | |
| Inlet Port: | 1-1/4" BSP | |
| Outlet Port: | 1" BSP | |
| Oil Bath Capacity: | 2500ml (half level of oil gauge) | |
| Oil Type: | 85W/90 or greater GEAR OIL | |
| Water Inlet Pressure: | 0-50psi/3.5bar | |
| Max Inlet Water Temp.: | 50℃/122℉ | |
| Shipping Size.: | 46.5x35x25cm | |
| Shipping Weight.: | 45kgs | |
| Application: | High Pressure Water | |
