DESCRIPTION

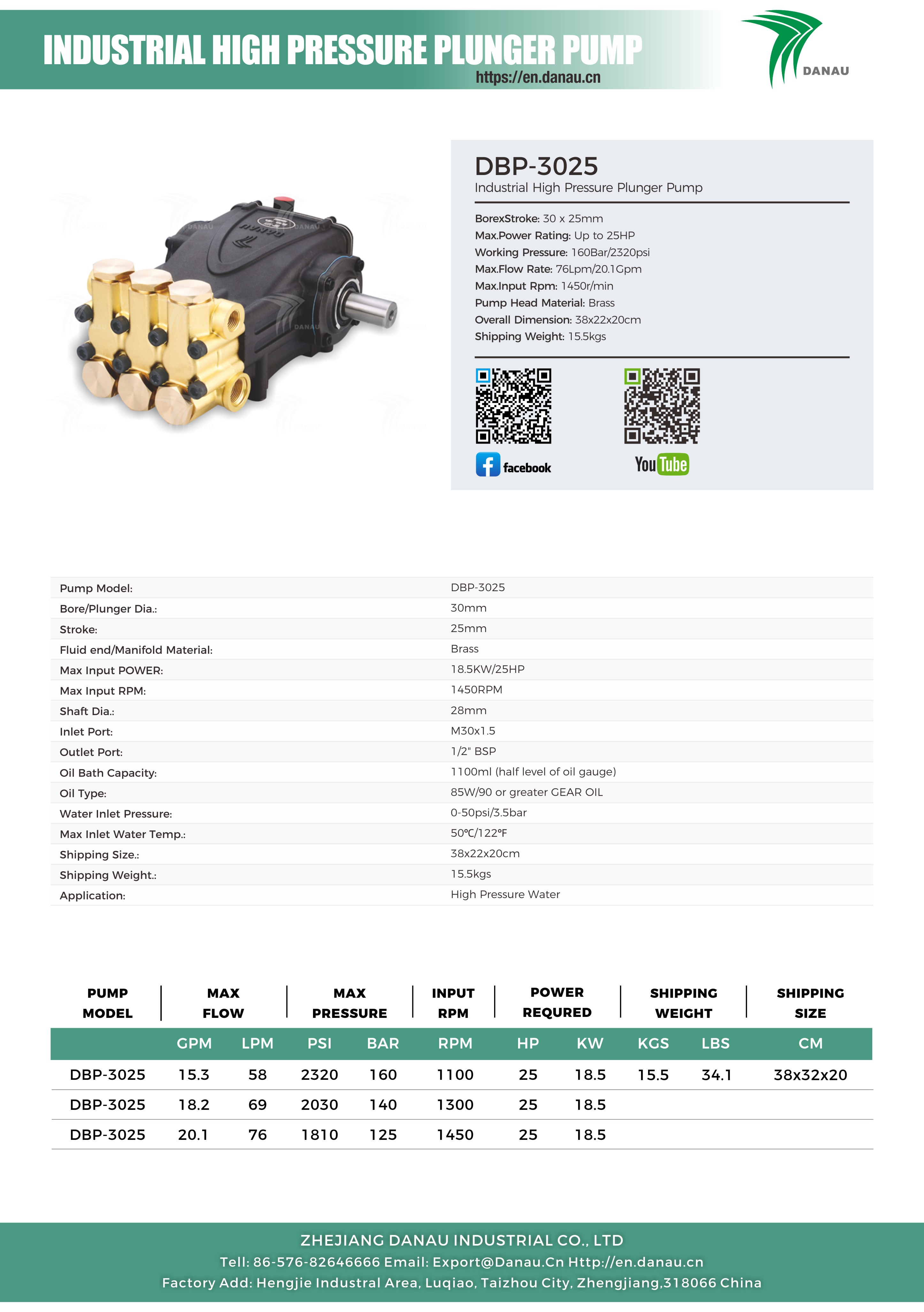

Pump Model: DBP-3025
Bore/Plunger Dia.: 30mm
Stroke: 25mm
Fluid end/Manifold Material: Brass Forged
Max Input POWER: 18.5KW/25HP
Max Input RPM: 1450RPM
Shaft Dia.: 28mm
Inlet Port: M30x1.5
Outlet Port: 1/2" BSP
Oil Bath Capacity: 1100ml (half level of oil gauge)
Oil Type:
85W/90 or greater GEAR OIL
Water Inlet Pressure:
0-50psi/3.5bar
Max Inlet Water Temp.:
50℃/122℉
Shipping Size.:
38x22x20cm
Shipping Weight.:
15.5kgs
Application:
High Pressure Water
